ARRI: Skypanel S30-C

ARRI: Skypanel S30-C

ARRI continues to broaden their LED line and reaffirm their commitment to accurate color rendering with the introduction of the blue/silver SkyPanel S30-C LED Softlight. Supported by a manual aluminum yoke, the panel’s surface area measures 14 x 11.8″, making it an ideal portable, on-the-go light source for mobile applications. Output is controlled via interchangeable thermoplastic diffusers that range from Standard to Lite to Heavy to soften the light and wrap its output around your subject and the SkyPanel S30-C outputs the equivalent of a 1000W tungsten soft light while drawing a maximum of only 240W.

Using technology originally designed for the L7-C Fresnel, the SkyPanel S30-C is fully color “tuneable” allowing output of a warm 2800K to icy blue 10,000K light and also uses the full RGB+W color gamut with hue and saturation control for fine adjustments. Full minusgreen to full plusgreen is also possible, so if you’re lighting for blue or greenscreen, you can simply dial your color chosen in. This wide degree of control is responsible for a very high CRI of 95 and a rating of 91 with the newer TLCI standard. All of these functions as well as 0-100% dimming can adjusted locally with the SkyPanel’s onboard controller or remotely via DMX or over a LAN. Besides inputs and outputs appropriate to these functions, the light also has a USB-A port for downloading firmware upgrades from a thumb drive, Windows or Mac.

The SkyPanel S30-C can be used worldwide, thanks to its included 90-250 VAC power supply, but it can also use optional 23-36 VDC batteries when mains power is unavailable. Besides the power supply, the light comes with a combo baby/junior (5/8″ | 1-1/8″) pin and a standard diffuser. This version of the light comes with a 9.8′-long Edison DC power cable.

Kit Includes:

  • 1x S30 Unit Head
  • 1x S30 Diffusion Panel
  • 1x Mounting Bracket
  • 1x Yoke
  • 1x True1 Cable
  • 1x DC Cable
  • 1x S30 PSU
  • 1x Case

Fixture Specifications:

  • CCT (2800K-10000K), HSI with Hue & Saturation Control, RGBW Mixing, Assorted Digital Gels, Lighting Effects
  • Mount: Junior or Baby Pin Capable
  • Soft Light
  • Output: 282 Lux / 26 fc @ 5m, 5600K
  • Input Power: AC 110-240V, 50/60Hz
  • Battery Compatibility: Yes. 23 to 36 VDC
  • Wireless Connectivity: Via Skylink
  • DMX Capable: Yes via 5-pin XLR
  • Power Cable: True1 Cable
  • App Connectivity: No

Accessories Available Upon Request:

  • S30 S Chimera
  • S Chimera Egg Crate
  • S30 Snapgrid, 40 Degree
  • Skypanel Remote
  • Octa 5 Snapbag for Rabbit Ears
  • Octa 5 Snapgrid for Snapbag

“Inspiring images. Since 1917.” ARRI is a global player within the motion picture industry, employing around 1,600 staff worldwide. Named after its founders August Arnold and Robert Richter, ARRI was established in Munich, Germany, where the headquarters is still located today. Other subsidiaries are in Europe, North and South America, Asia, and Australia.

The ARRI Group consists of the business units Camera Systems, Lighting, Rental, and Solutions, as well as the subsidiary Claypaky, all dedicated to connecting creativity and future technologies for moving images and live entertainment. ARRI is a leading designer and manufacturer of camera and lighting systems for the film, broadcast, media, and entertainment industries, with a worldwide distribution and service network. The portfolio includes digital cameras, lenses, camera accessories, archive technologies, lamp heads, and lighting accessories. Along with offering exclusive technologies, ARRI Rental’s first-class services and equipment provide camera, lighting, and grip packages to professional productions around the world. ARRI Solutions offers high-quality virtual and traditional production infrastructure solutions and efficient, integrated workflows to a broad range of studio operators, producers, and enterprises. Claypaky fascinates audiences worldwide with cutting-edge live entertainment and stage lighting.

In recognition of its innovative contributions to the film and television industries, ARRI has been honored with 19 scientific and technical awards from the Academy of Motion Picture Arts & Sciences and six Engineering Emmys from the Television Academy and the National Academy of Television Arts & Sciences.



Visit Arri:

Arri: S30-C

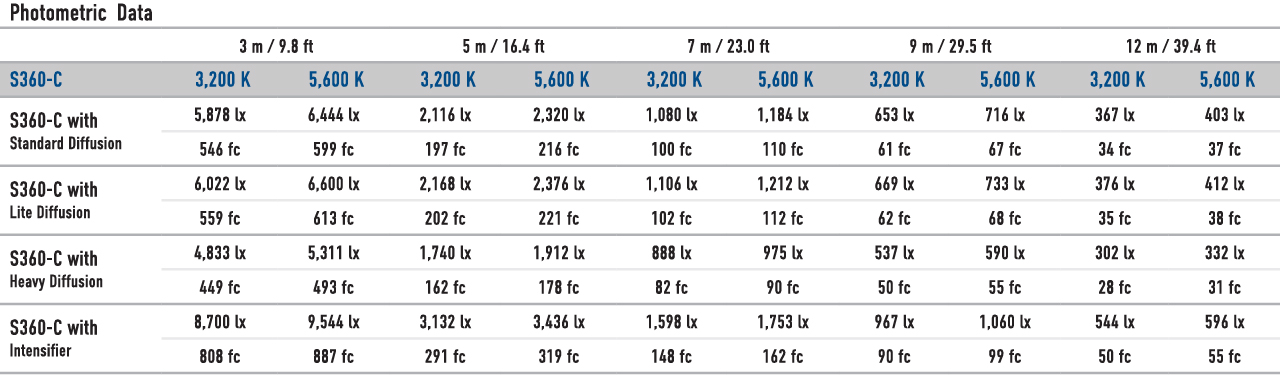

Photometric Data
