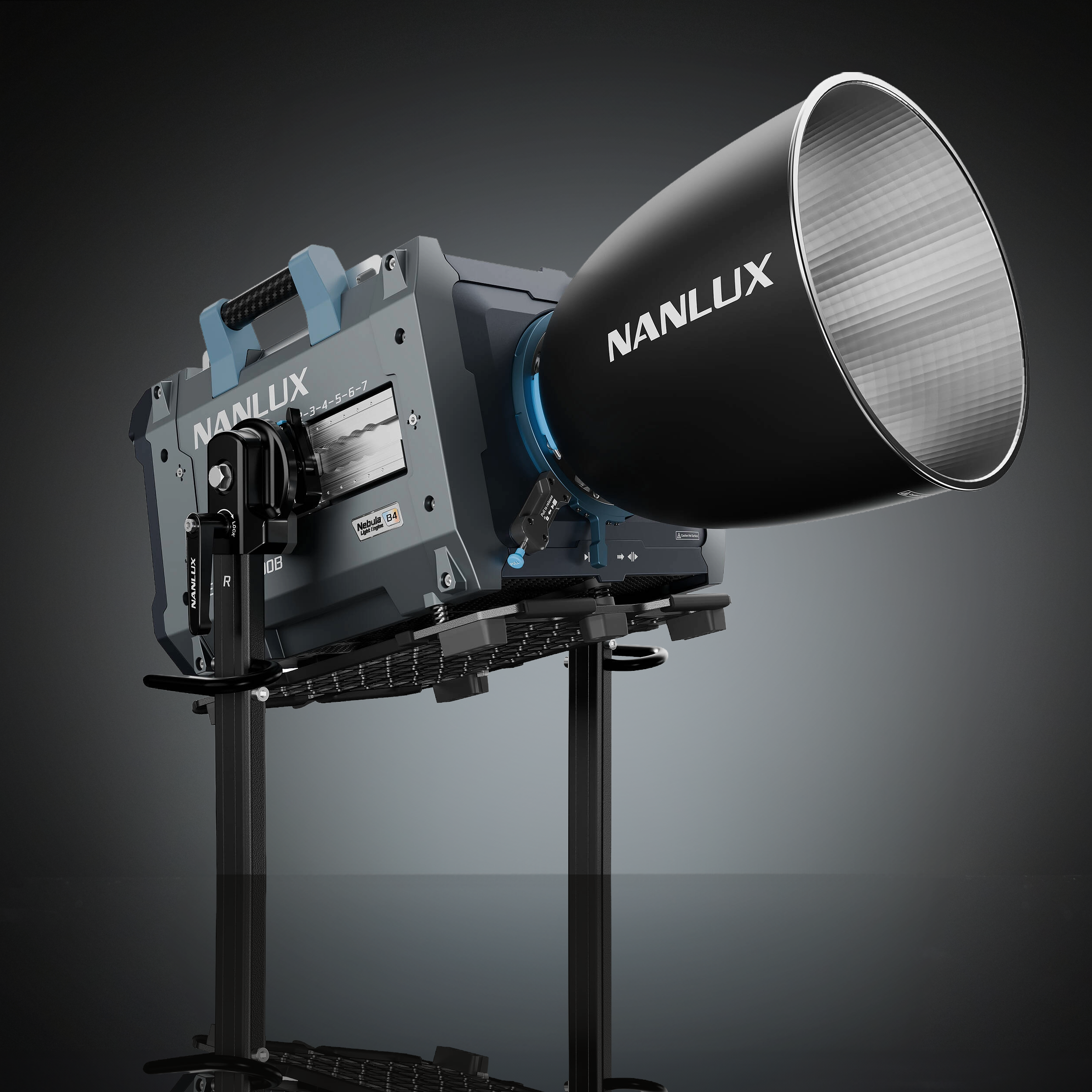

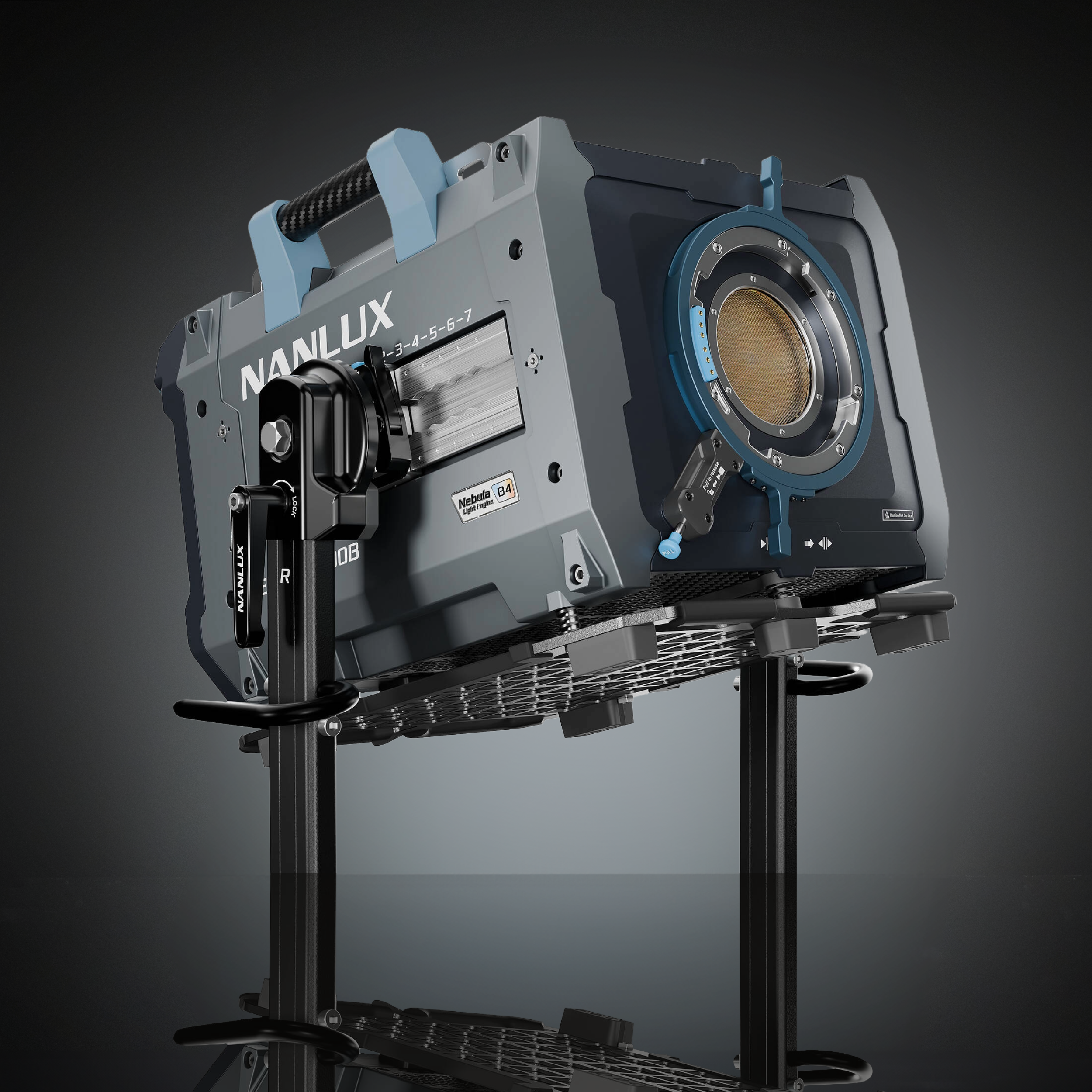

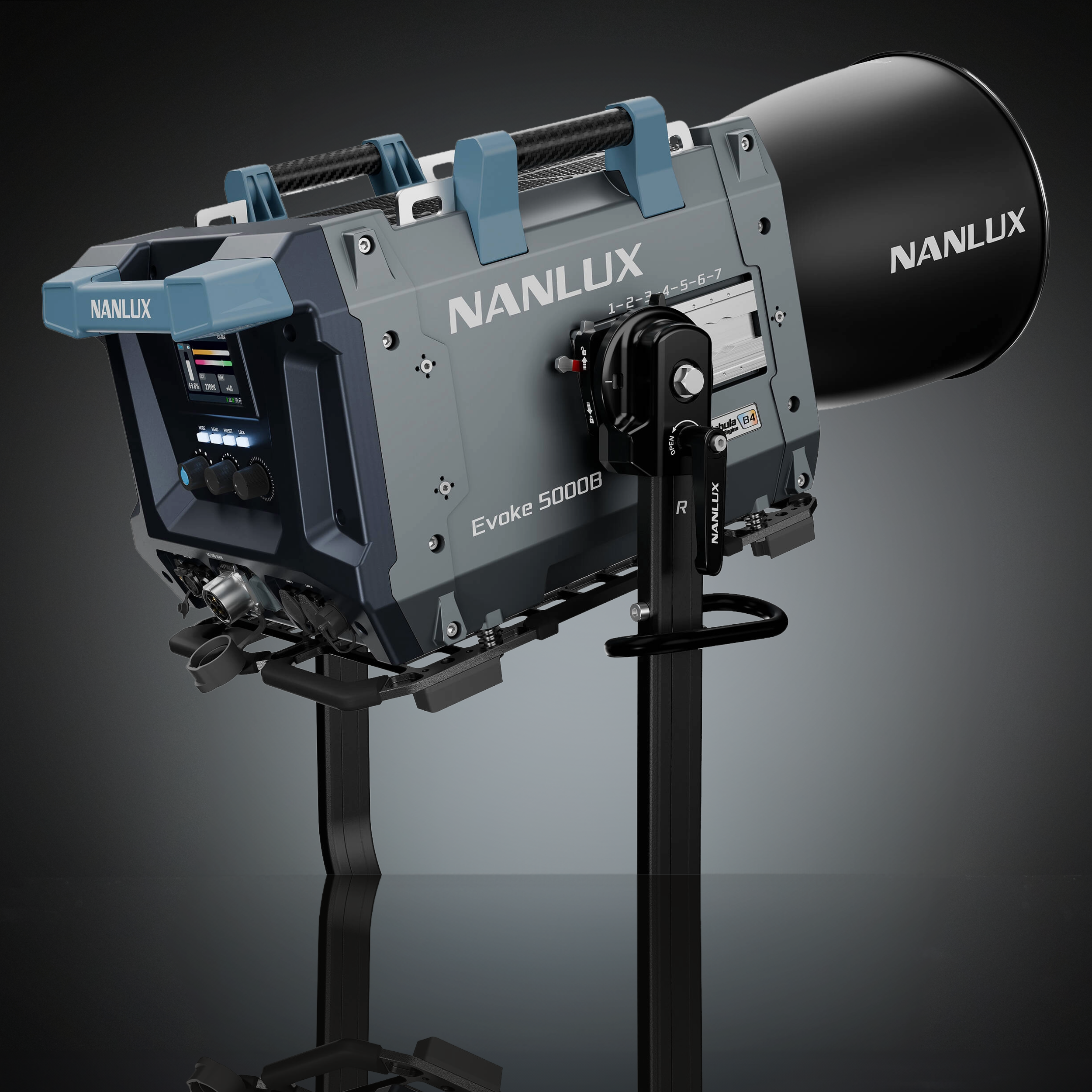

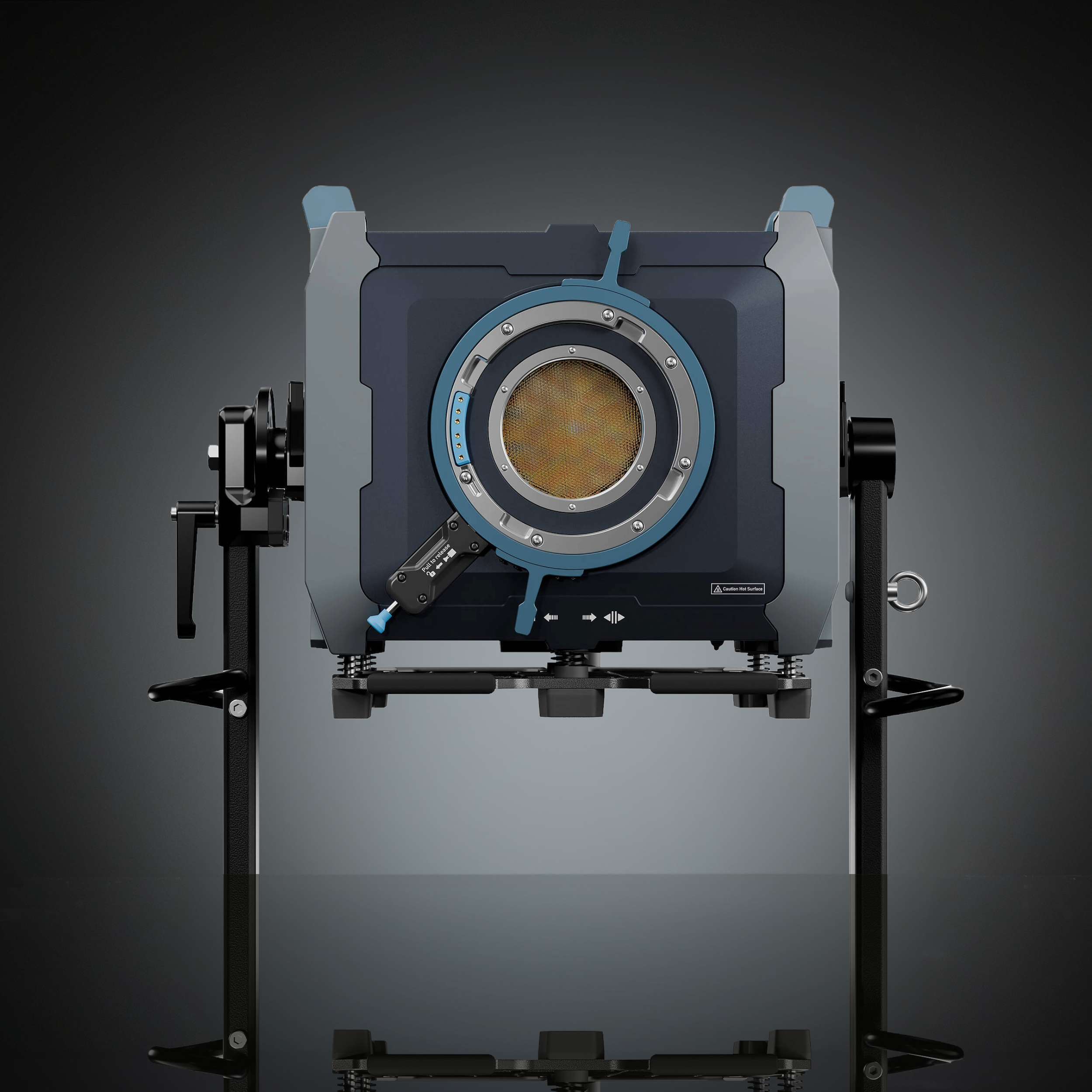

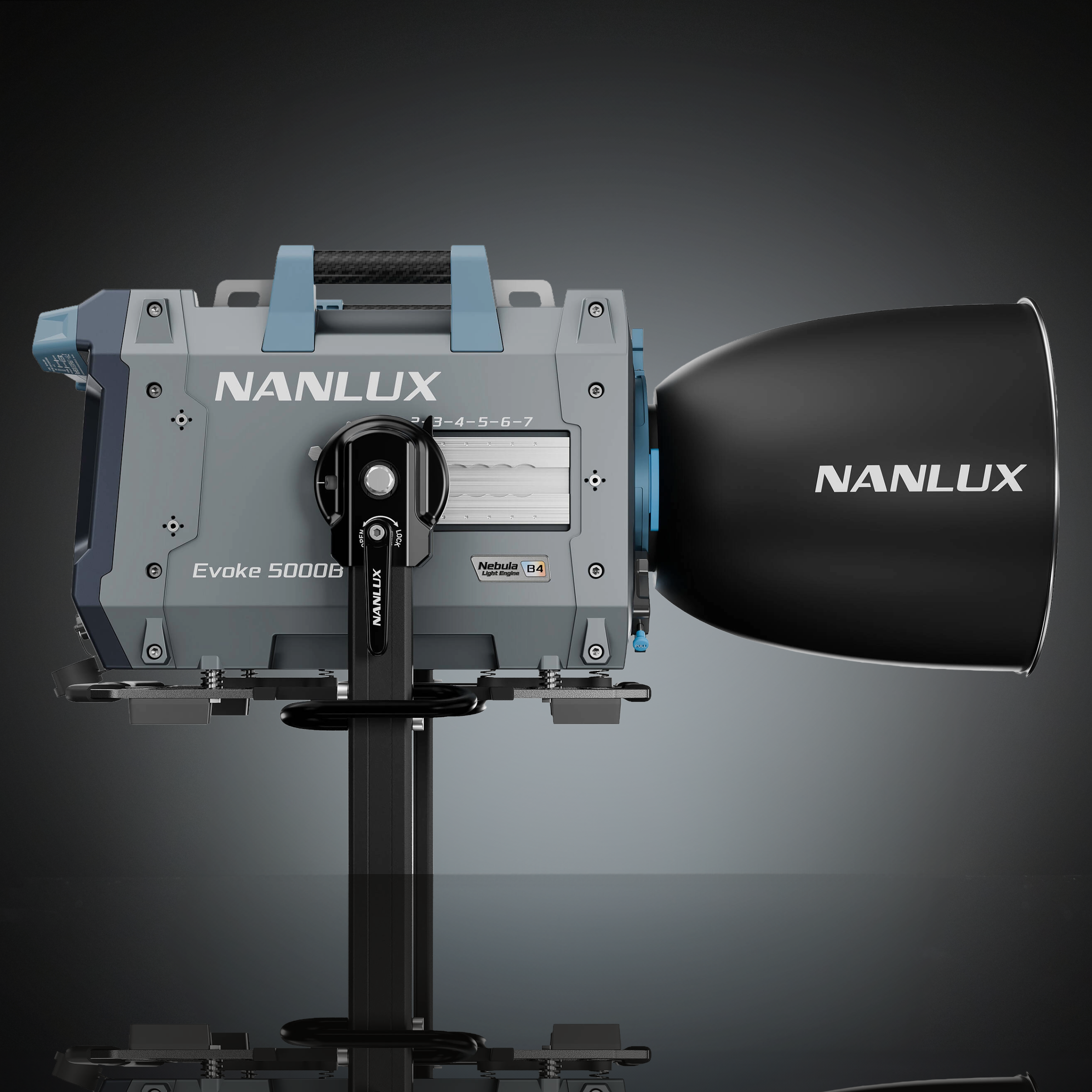

Nanlux: Evoke 5000B
Nanlux: Evoke 5000B
The Nanlux Evoke 5000B integrates an impressive output with 5000W power draw, a color temperature range of 2700K-6500K, ±80 Green/Magenta adjustment, an IP66 rating, and the self-developed Nebula B4 Light Engine, all in one fixture. It features 0-100% dimming capabilities with 0.1% step increments for smooth light fades and seamless adjustments. Developed with optimizing mixing algorithms, the light’s High-Speed Mode maintains consistent and flicker-free lighting even while shooting at 10,000 frames per second. Connect through DMX/RDM, Art-Net/sACN, or the Nanlink 2.0 mobile app for extensive operating options. The Evoke 5000B features five quiet fan modes for consistent power and outputs during long shoots. Smart, Full Speed, Low Speed, Off, and Pause modes offer options to keep the light from overheating. In Smart Mode, the fan automatically adjusts and regulates the light based on its ambient temperature while operating at a low 44 dB noise level.
Kit Includes:
- 1x 5000B Unit Head with Yoke
- 1x Protective Cap
- 1x 45 Degree Reflector
- 1x Power Cable (60 Amp), 24′
- 1x Road Case
Fixture Specifications:
- Rated Power: 5000W (200V-240V), 5200W (100W-125W)
- Input Voltage Current: AC100V-240V/52A (Max) 50/60Hz
- CCT: 2700K-6500K (G/M ±80)
- CRI: Average 97
- TLCI: Average 98
- TM-30 Rf: Average 96
- TM-30 Rg: Average 102
- IP Rating: IP66
- Control: On-Board, wired controller, Nanlink app, remote controller, DMX/RDM, LumenRadio CRMX, Art-Net/sACN
- Product Size: Light Fixture w/o cap 21.92″ x 18.17″ x 16.67″
Yoke 31.33″ x 26.77″ x 6.54″ - Product Weight: ~ 90lbs, Yoke 6lbs
Visit Nanlux:

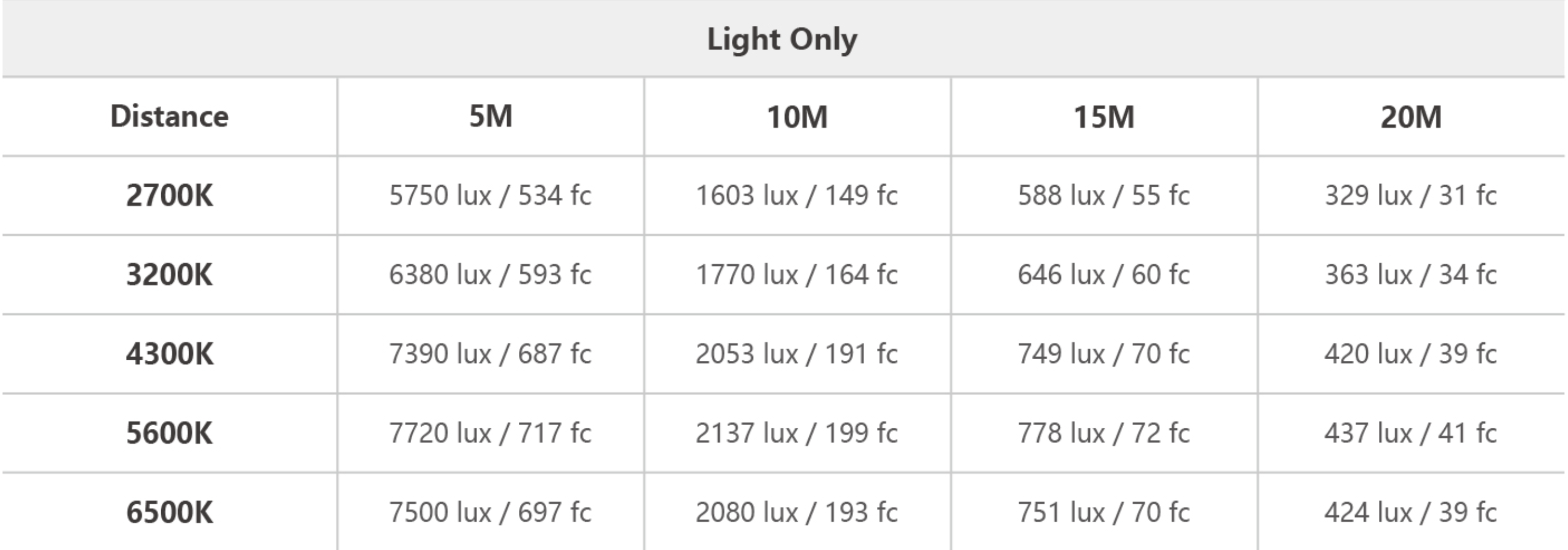

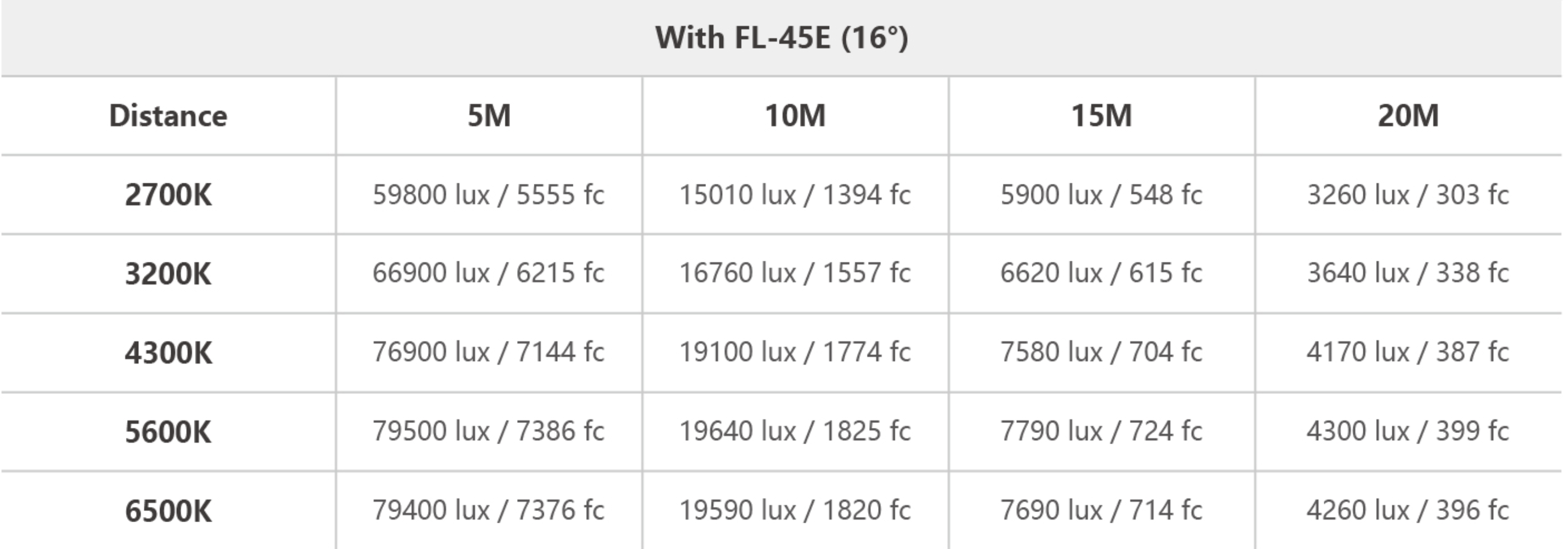

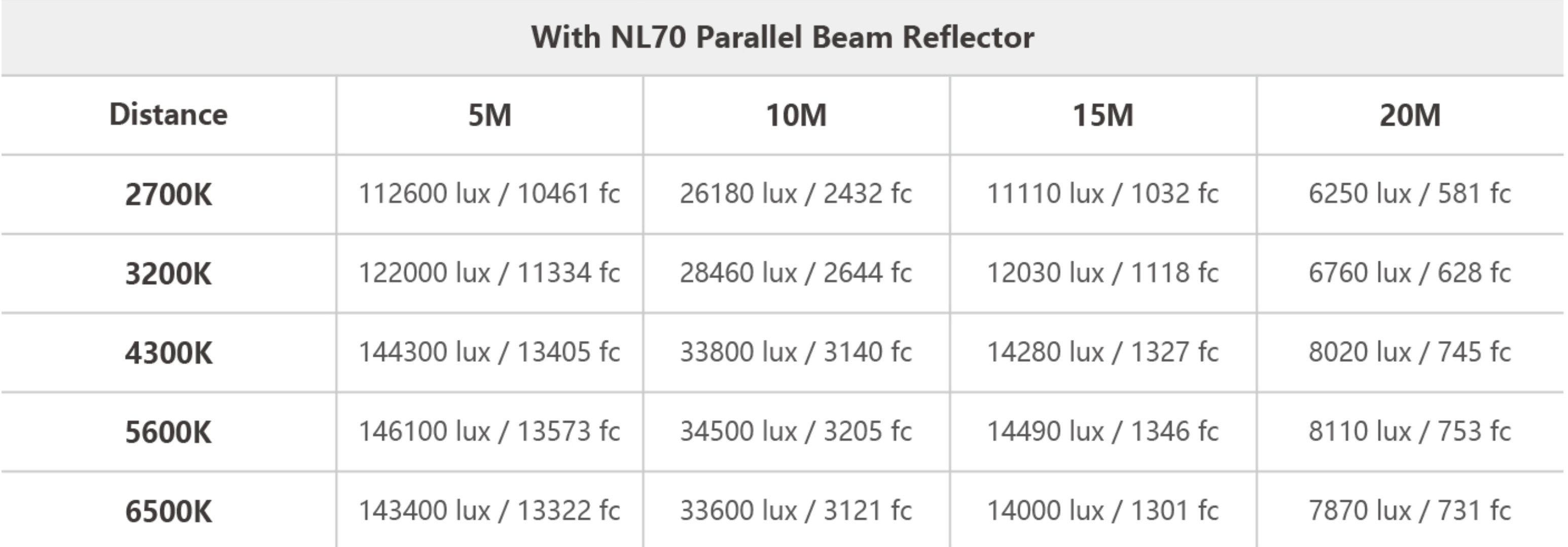

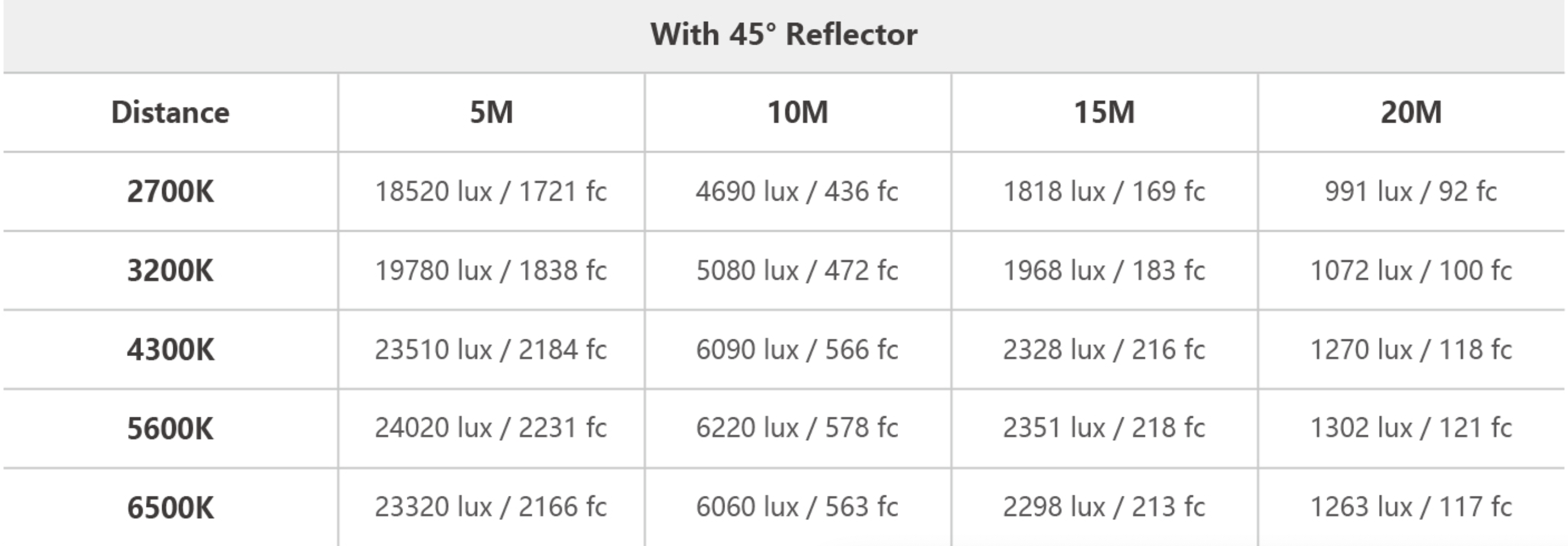

Photometric Data
