Creamsource: LNX
Creamsource: LNX

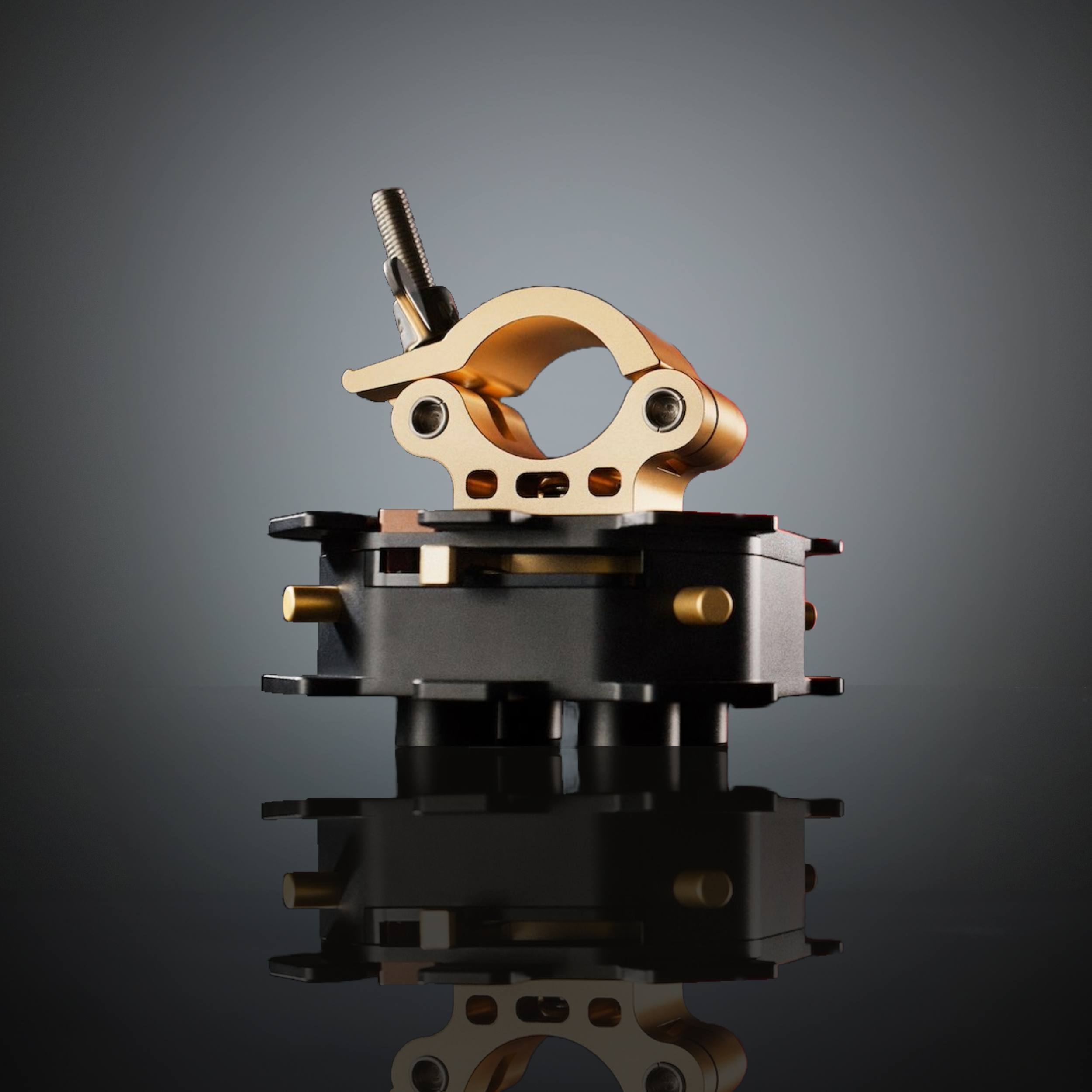

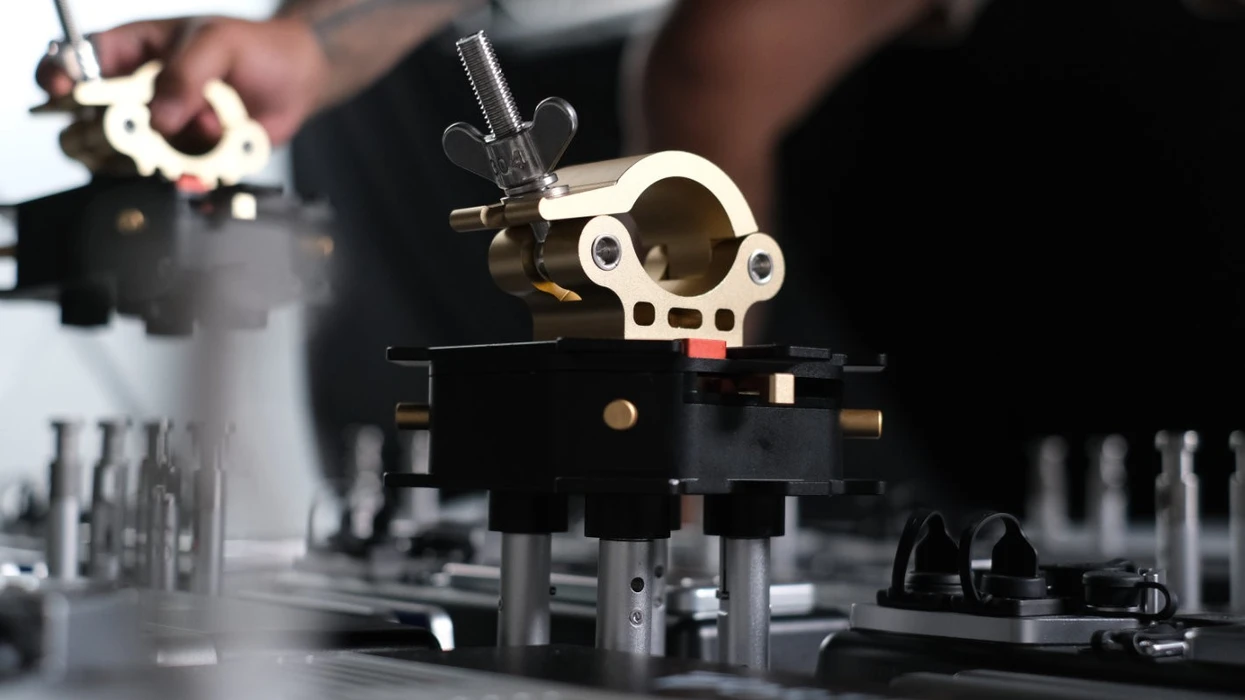

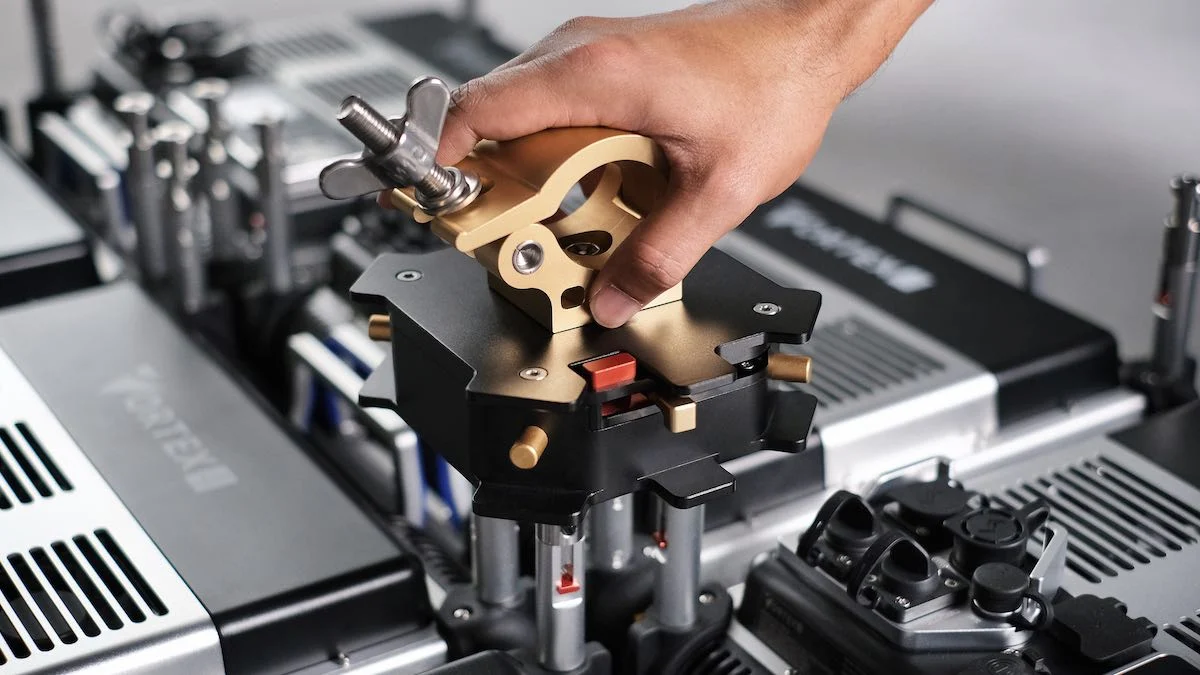

The LNX Rigging System is a first-of-its-kind rigging system that takes the guesswork out of creating arrays of Creamsource Vortex fixtures. The system is comprised of LNX Pins, which slot into the Vortex fixtures, and LNX 4-Way mounts, which accept the pins and serve as the building blocks of the array. The mounts then attach to industry standard pipe, such as Speed-Rail®, ensuring that the LNX system is a seamless addition to existing grip gear. The arrays can be as small as two units and as large as you can fit on a soundstage or construction crane. The LNX system leverages unique stainless steel mounting features integrated into each corner of the Vortex to be able to “link” one unit to the next, only requiring the yoke to first be removed. The arrays that are created using LNX are nearly gapless, with only about 7/8 in. (22.23 mm) separating adjacent fixtures, meaning that considerably more light can be packed into a given area. The quality of the light output is also more uniform, as the LNX system ensures uniformity of the spacing of the array.
Kit Includes:
- 24x LNX Pins
- 6x LNX 4-Way Mounts
What’s not in the kit?
- Pipe and/or truss
- Cheeseboros (grid clamps) and other grip hardware
- Chain motors
- Safety cables
- Tools, such as a crescent wrench
- Aerial lifts, cranes, etc
Fixture Specifications:
- Load Rating 68 kg (150 lb) per LNX PIN; 272 kg (600 lb) per LNX 4-WAY
- Weight (LNX PIN) 0.2 kg (0.45 lb)
- Dimensions (LNX PIN) 20.3 x 18.5 x 147.5 mm (0.8 x 0.73 x 5.81 in.)
- Weight (LNX 4-WAY) 2.07 kg (4.57 lb)
- Dimensions (LNX 4-WAY) 160 x 147.1 x 184.2 mm (6.3 x 5.79 x 7.25 in.)

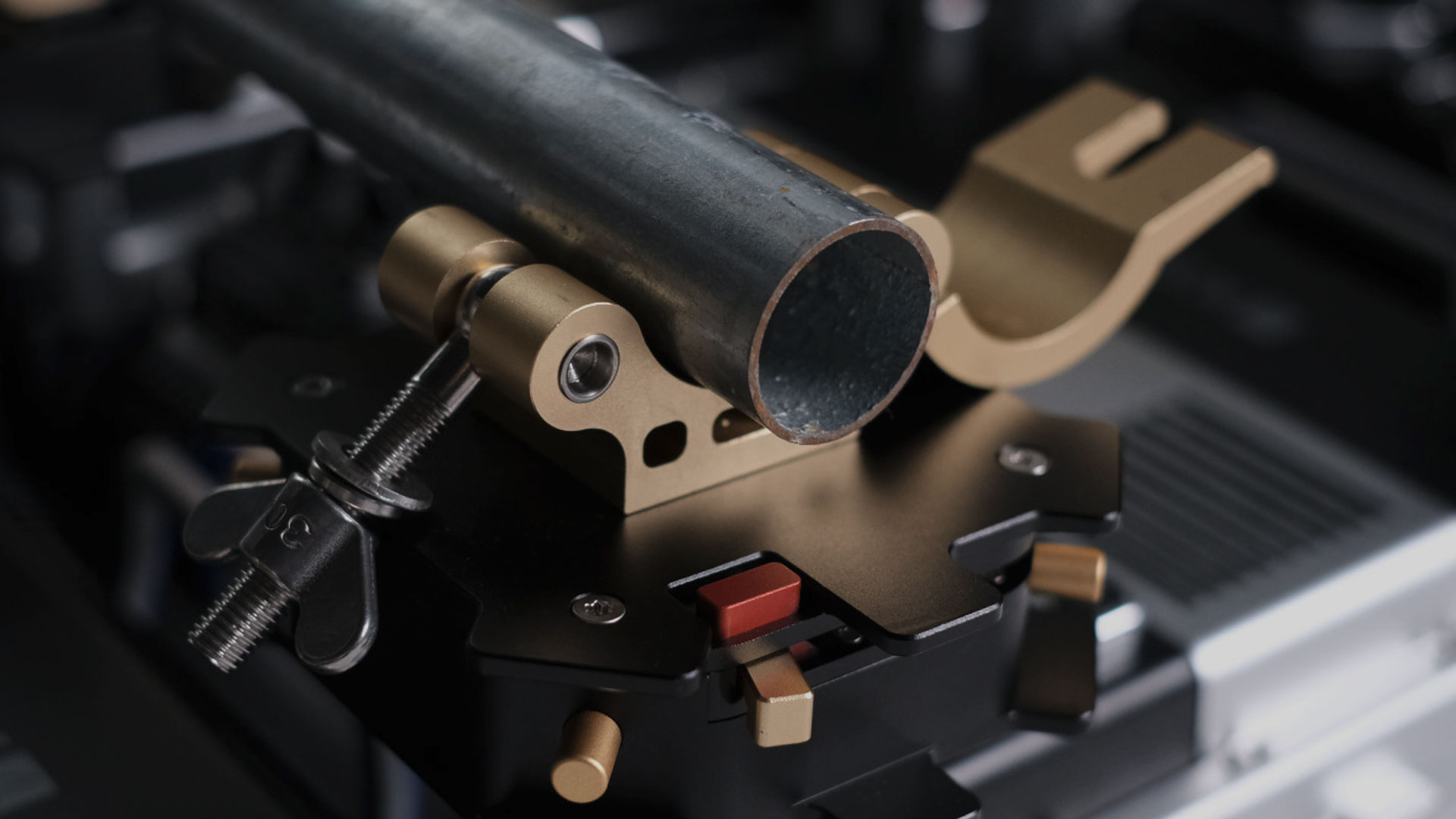

- Pipe 38.1 mm (1.5 in.) (inner diameter), minimum; 48 mm (1.89 in.) (outer diameter), minimum
